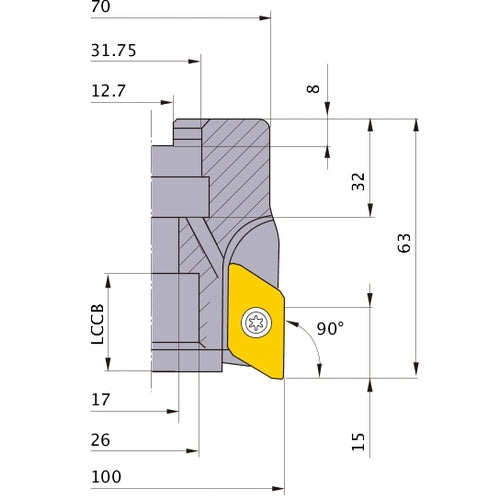

BXD4000R10006DA MILL
Item #: MB03490476
Brand: Mitsubishi Materials USA
Model #: 490476
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 100 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 100 mm |
| Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 15 mm |
| Functional Length (LF) | 63 mm |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Series/List # | BXD4000 |
