CB04RS-01 VP15TF BORING BAR
Item #: MB03492279
Brand: Mitsubishi Materials USA
Model #: 492279

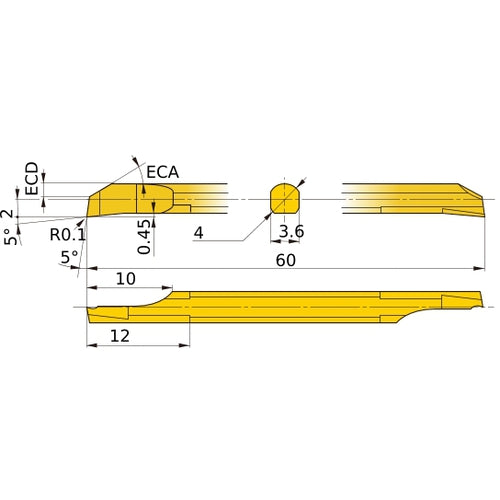

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Cutting Depth Maximum (CDX) | 12 mm |
| Minimum Bore Diameter (DMIN) | 4.2 mm |
| Functional Width (WF) | 2 mm |
| Head Length (LH) | 10 mm |
| Shank Height (H) | 3.6 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
| Grade | VP15TF |
| Series/List # | CB |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Measurement Type | Metric |
| Corner Radius (RE) | 0.1 mm |
| Overall Length (OAL) | 60 mm |
