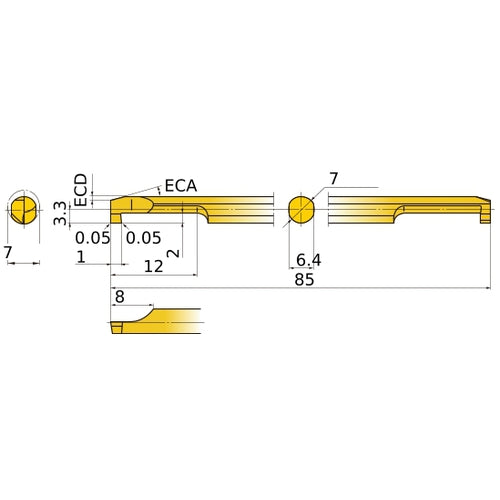

CG0712RS-10B VP15TF BORING BAR
Item #: MB03493167
Brand: Mitsubishi Materials USA
Model #: 493167
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 7 mm |
| Grade | VP15TF |
| Corner Radius (RE) | 0.05 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Cutting Width (CW) | 1 mm |
| Series/List # | CG |
| Cutting Depth Maximum (CDX) | 8 mm |
| Minimum Bore Diameter (DMIN) | 7 mm |
| Overall Length (OAL) | 85 mm |
| Height | 6.4 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Length | 12 mm |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
