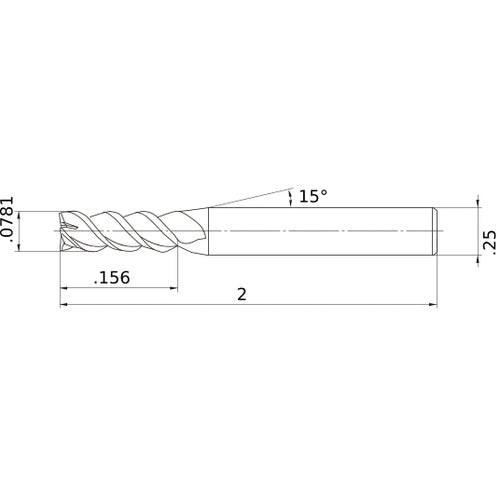

MSMHZDD5/64 CARBIDE ENDMILL
Item #: MB03494303
Brand: Mitsubishi Materials USA
Model #: 494303
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.0781″ |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 0.156″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Overall Length (OAL) | 2″ |
| Length Group | Medium |
| Coating | MS |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | MSMHZD_INCH |
| Flute Helix Angle (FHA) | 45 Degrees |
