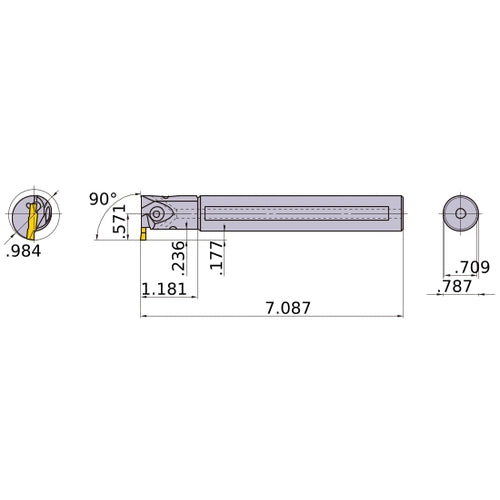

GYAL20Q90A-D06 BORING BAR
Item #: MB03503231
Brand: Mitsubishi Materials USA
Model #: 503231
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 2 mm |
| Functional Length (LF) | 180 mm |
| Cutting Depth Maximum (CDX) | 6 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Shank Height (H) | 18 mm |
| Cutting Direction (HAND) | Left Hand |
| Minimum Bore Diameter (DMIN) | 25 mm |
| Series/List # | GYA_D90 |
| Functional Width (WF) | 14.5 mm |
| Measurement Type | Metric |
