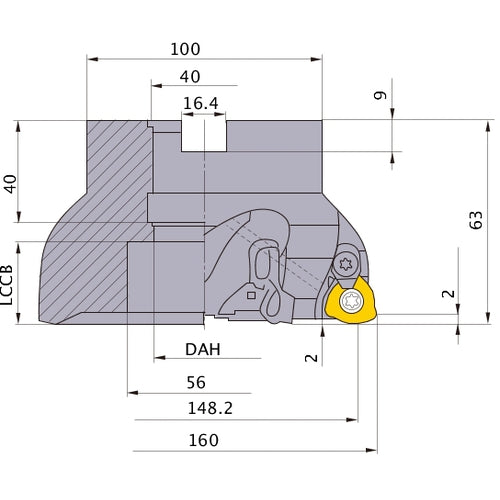

AJX14-160B08R MILL
Item #: MB03510852
Brand: Mitsubishi Materials USA
Model #: 510852
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 148.2 mm |
| Ramping Angle Maximum (RMPX) | 0.5 Degrees |
| Cutting Diameter (DC) | 148.2 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 160 mm |
| Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 2 mm |
| Functional Length (LF) | 63 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Series/List # | AJX_MM |
