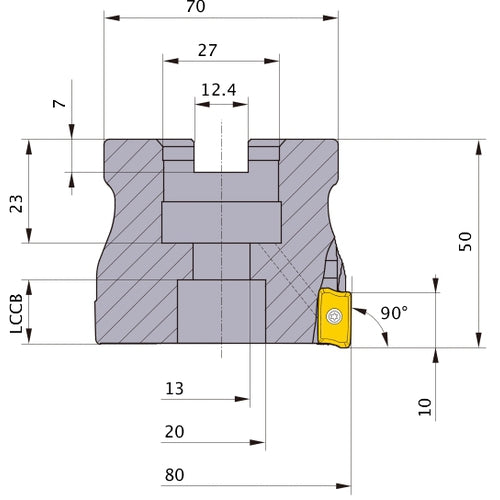

APX3000-080A09RA MILL
Item #: MB03510861
Brand: Mitsubishi Materials USA
Model #: 510861
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 80 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 80 mm |
| Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 10 mm |
| Functional Length (LF) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 27 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1 Degrees |
| Series/List # | APX3000_MM |
