SPX4R06324CA058A INDX EM
Item #: MB03511231
Brand: Mitsubishi Materials USA
Model #: 511231

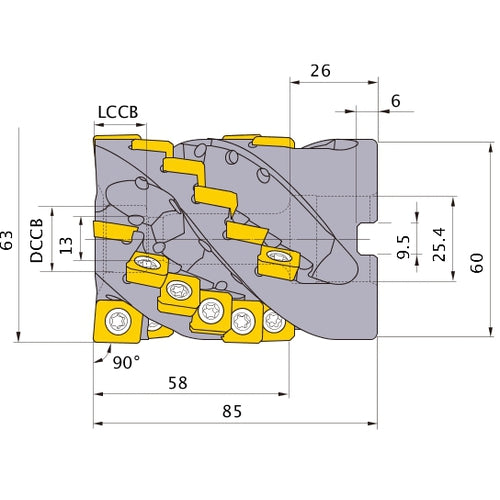

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 63 mm |
| Flute Count (NOF) | 4 |
| Cutting Diameter (DC) | 63 mm |
| Body Diameter (BD) | 60 mm |
| Cutting Item Count (CICT) | 24 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 58 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm |
| Series/List # | SPX_SHELL |
| Functional Length (LF) | 85 mm |
| Measurement Type | Metric |
