APX4KR5018WA508M084A EM
Item #: MB03513447
Brand: Mitsubishi Materials USA
Model #: 513447

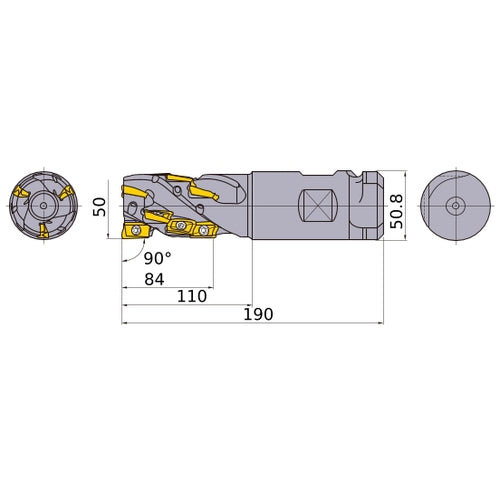

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 50 mm |
| Functional Length (LF) | 190 mm |
| Cutting Diameter (DC) | 50 mm |
| Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 18 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 84 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 50.8 mm |
| Series/List # | APX4000_LONG |
| Head Length (LH) | 110 mm |
| Measurement Type | Metric |
