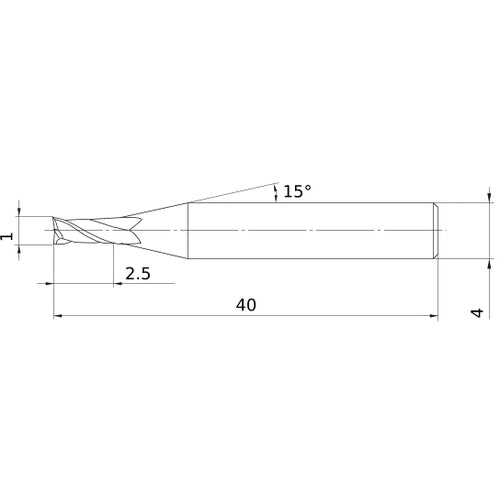

VF2MVD0100 SOLID CARBIDE EM
Item #: MB03518416
Brand: Mitsubishi Materials USA
Model #: 518416
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1 mm |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 2.5 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Overall Length (OAL) | 40 mm |
| Length Group | Medium |
| Coating | VF |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Series/List # | VF2MV |
