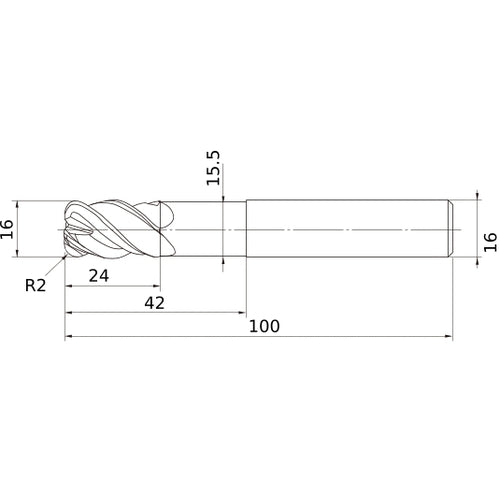

VFHVRBD1600R20N042
Item #: MB03528569
Brand: Mitsubishi Materials USA
Model #: 528569
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Corner Radius (RE) | 2 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Neck Diameter (DN) | 15.5 mm |
| Depth of Cut Maximum (APMX) | 24 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Overall Length (OAL) | 100 mm |
| Length Group | Medium |
| Coating | VF |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Series/List # | VFHVRB |
| Usable Length (LU) | 42 mm |
