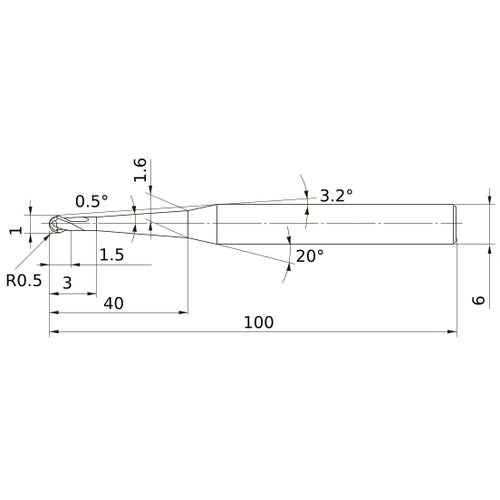

DF3XBR0050L040
Item #: MB03539452
Brand: Mitsubishi Materials USA
Model #: 539452
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1 mm |
| Corner Radius (RE) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Neck Diameter (DN) | 1.6 mm |
| Depth of Cut Maximum (APMX) | 1.5 mm |
| Body Half Taper Angle (BHTA) | 0.5 Degrees |
| Overall Length (OAL) | 100 mm |
| Length Group | Taper Neck |
| Coating | DF |
| End Shape | Ball Nose |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | DF3XB |
| Usable Length (LU) | 3 mm |
