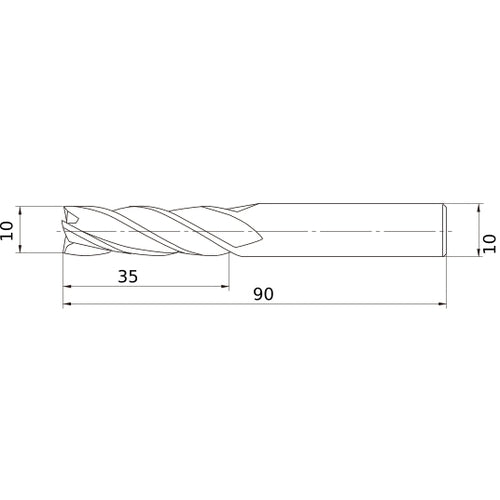

DF4JCD1000
Item #: MB03539575
Brand: Mitsubishi Materials USA
Model #: 539575
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| End Shape | Center Cutting |
| Depth of Cut Maximum (APMX) | 35 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Overall Length (OAL) | 90 mm |
| Length Group | Semi Long |
| Coating | DF |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Series/List # | DF4JC |
