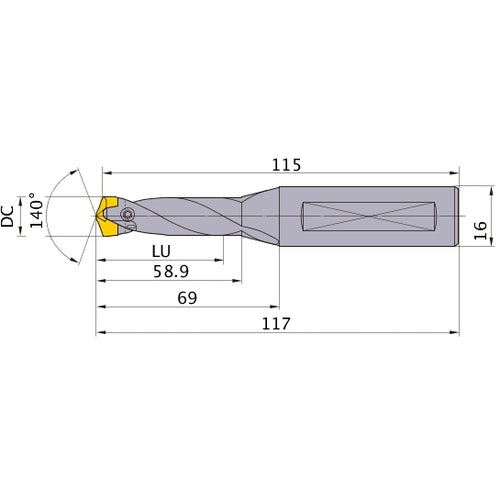

STAWMN1050S16 INDX DRILL
Item #: MB03541341
Brand: Mitsubishi Materials USA
Model #: 541341
| Product Specifications | |
|---|---|
| Usable Length (LU) | 58.9 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 5D |
| Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Measurement Type | Metric |
| Protruding Length (LPR) | 68.9 mm |
| Series/List # | STAW |
| Functional Length (LF) | 115 mm |
| Angle | 140 Degrees |
| Overall Length (OAL) | 116.9 mm |
