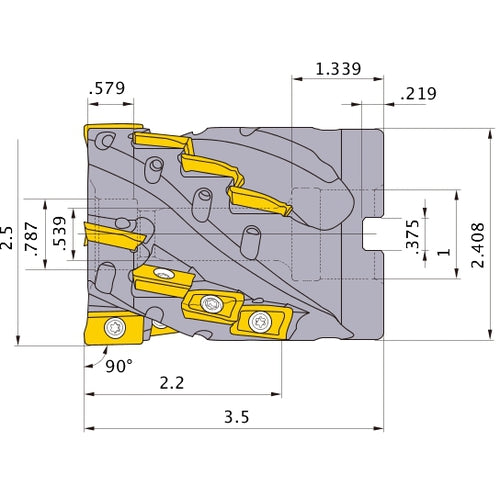

APX4KUR2516CA22A FACE MILL
Item #: MB03544041
Brand: Mitsubishi Materials USA
Model #: 544041
| Product Specifications | |
|---|---|
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Overall Length (OAL) | 3-1/2″ |
| Cutting Item Count (CICT) | 9 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.2″ |
| Measurement Type | Inch |
| Cutting Diameter (DC) | 2-1/2″ |
| Series/List # | APX4000_SHELL_INCH |
| Connection Diameter Machine Side (DCONMS) | 1″ |
