VFHVRBD1300R30
Item #: MB03545908
Brand: Mitsubishi Materials USA
Model #: 545908

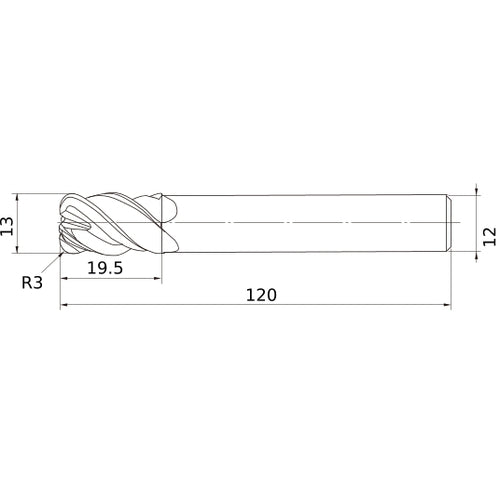

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 13 mm |
| Corner Radius (RE) | 3 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 19.5 mm |
| Length Group | Medium |
| Overall Length (OAL) | 120 mm |
| Measurement Type | Metric |
| Coating | VF |
| Series/List # | VFHVRB |
| End Shape | Corner Radius |
