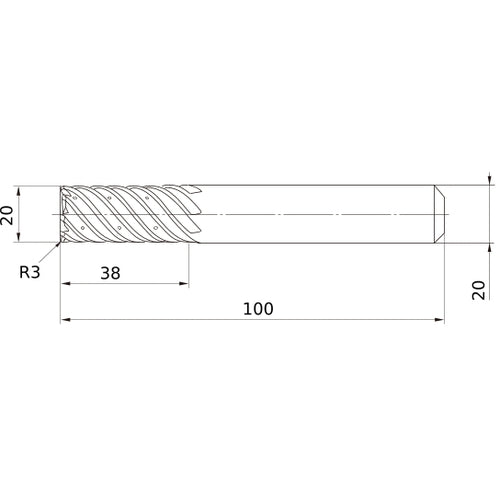

VF8MHVRBCHD2000R300
Item #: MB03548228
Brand: Mitsubishi Materials USA
Model #: 548228
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| Corner Radius (RE) | 3 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 |
| Depth of Cut Maximum (APMX) | 38 mm |
| Length Group | Medium |
| Overall Length (OAL) | 100 mm |
| Measurement Type | Metric |
| Coating | VF |
| Series/List # | VF8MHVRBCH |
| End Shape | Corner Radius |
