AXD4000-080A05RB MILL
Item #: MB03578401
Brand: Mitsubishi Materials USA
Model #: 578401

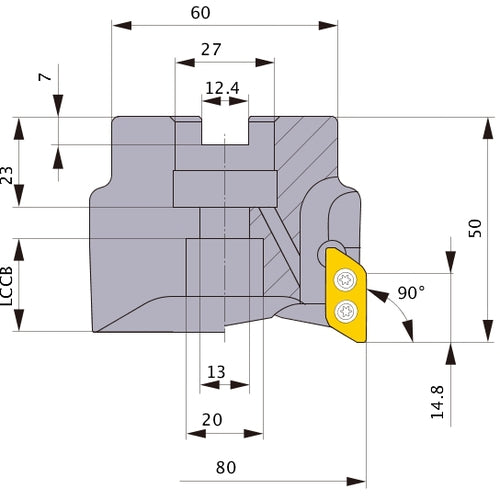

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 80 mm |
| Measurement Type | Metric |
| Cutting Diameter (DC) | 80 mm |
| Functional Length (LF) | 50 mm |
| Depth of Cut Maximum (APMX) | 14.8 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 27 mm |
| Series/List # | AXD4000_MM |
| Cutting Direction (HAND) | Right Hand |
