DFC4JCD1200
Item #: MB03594742
Brand: Mitsubishi Materials USA
Model #: 594742

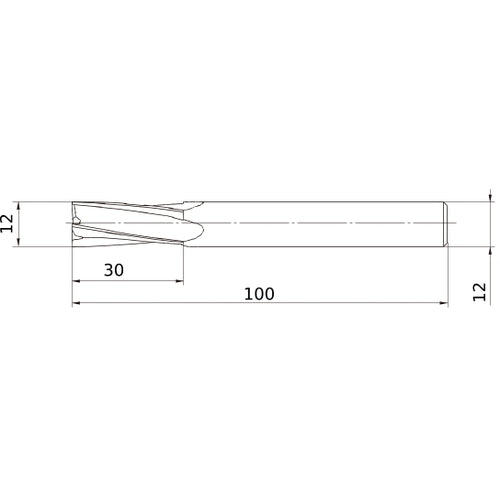

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Flute Helix Angle (FHA) | 10 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 30 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Overall Length (OAL) | 100 mm |
| Length Group | Semi Long |
| Coating | DFC |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Series/List # | DFC4JC |
