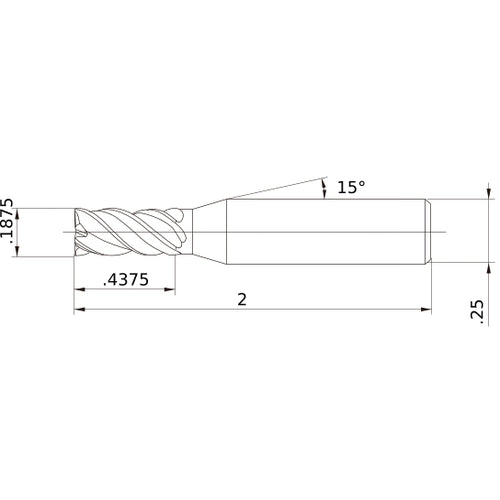

VQMHVD3/16 CARBIDE ENDMILL
Item #: MB03613966
Brand: Mitsubishi Materials USA
Model #: 613966
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 7/16″ |
| Length Group | Medium |
| Overall Length (OAL) | 2″ |
| Decimal Equivalent | 0.1875″ |
| Coating | VQ |
| Measurement Type | Inch |
| End Shape | Center Cutting |
| Series/List # | VQMHV_INCH |
