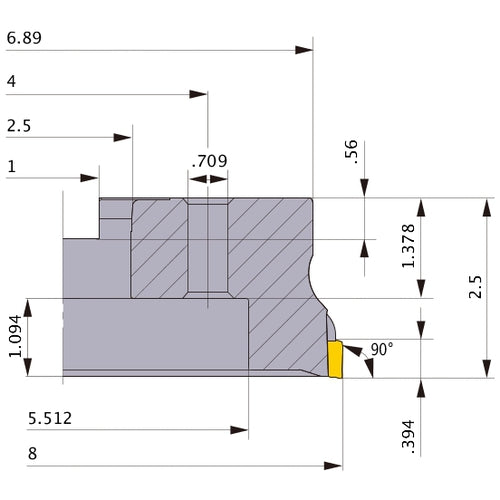

VOX400UR0826M FACE MILL
Item #: MB03617086
Brand: Mitsubishi Materials USA
Model #: 617086
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 8″ |
| Measurement Type | Inch |
| Cutting Diameter (DC) | 8″ |
| Functional Length (LF) | 2-1/2″ |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 2-1/2″ |
| Series/List # | VOX400_INCH |
| Cutting Direction (HAND) | Right Hand |
