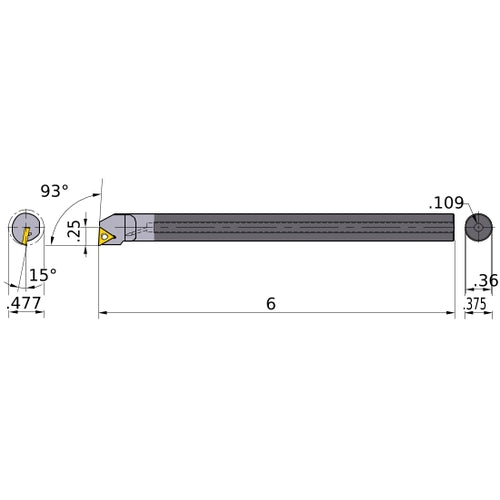

E06M-STUCR2 BAR
Item #: MB0362024884
Brand: Mitsubishi Materials USA
Model #: 62024884
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 6″ |
| Frontal Edge Angle | 93 Degrees |
| Shank Height (H) | 0.36″ |
| Rake Angle Radial (GAMF) | 15 Degrees |
| Functional Width (WF) | 1/4″ |
| Series/List # | E-STUC_C_INCH |
| Minimum Bore Diameter (DMIN) | 0.477″ |
| Measurement Type | Inch |
