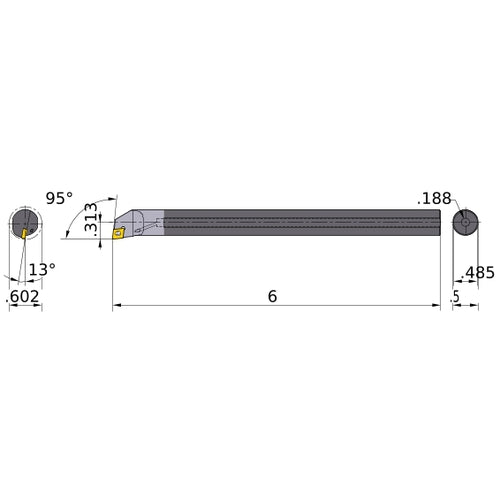

E08M-SCLCL2 BAR
Item #: MB0362024938
Brand: Mitsubishi Materials USA
Model #: 62024938
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 6″ |
| Frontal Edge Angle | 95 Degrees |
| Shank Height (H) | 0.485″ |
| Rake Angle Radial (GAMF) | 13 Degrees |
| Functional Width (WF) | 0.313″ |
| Series/List # | E-SCLC_C_INCH |
| Minimum Bore Diameter (DMIN) | 0.602″ |
| Measurement Type | Inch |
