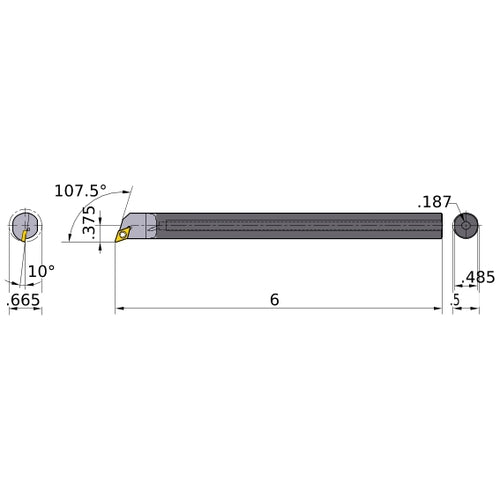

E08M-SDQCL2 BAR
Item #: MB0362024976
Brand: Mitsubishi Materials USA
Model #: 62024976
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 6″ |
| Frontal Edge Angle | 107.5 Degrees |
| Shank Height (H) | 0.485″ |
| Rake Angle Radial (GAMF) | 10 Degrees |
| Functional Width (WF) | 3/8″ |
| Series/List # | E-SDQC_C_INCH |
| Minimum Bore Diameter (DMIN) | 0.665″ |
| Measurement Type | Inch |
