E16T-SVUCL3 BAR
Item #: MB0362025676
Brand: Mitsubishi Materials USA
Model #: 62025676

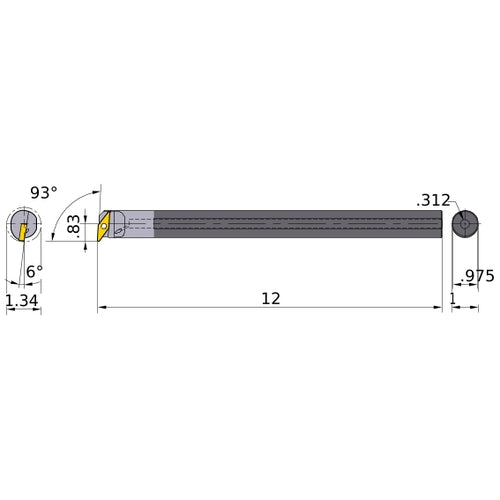

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 12″ |
| Frontal Edge Angle | 93 Degrees |
| Shank Height (H) | 0.975″ |
| Rake Angle Radial (GAMF) | 6 Degrees |
| Functional Width (WF) | 0.83″ |
| Series/List # | E-SVUC_C_INCH |
| Minimum Bore Diameter (DMIN) | 1.34″ |
| Measurement Type | Inch |
