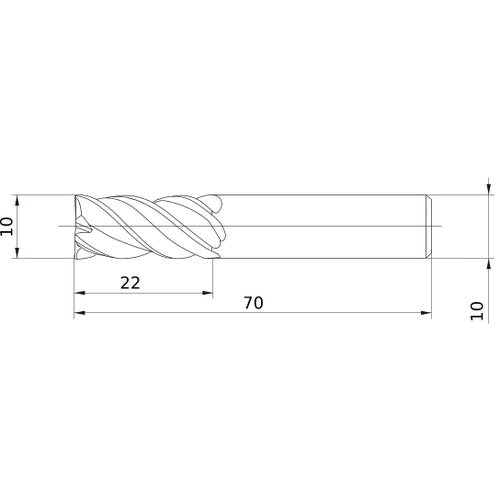

VQMHVD1000 CARBIDE ENDMILL
Item #: MB03621510
Brand: Mitsubishi Materials USA
Model #: 621510
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 22 mm |
| Length Group | Medium |
| Overall Length (OAL) | 70 mm |
| Measurement Type | Metric |
| Coating | VQ |
| Series/List # | VQMHV |
