VQMHZVD1500
Item #: MB03622070
Brand: Mitsubishi Materials USA
Model #: 622070

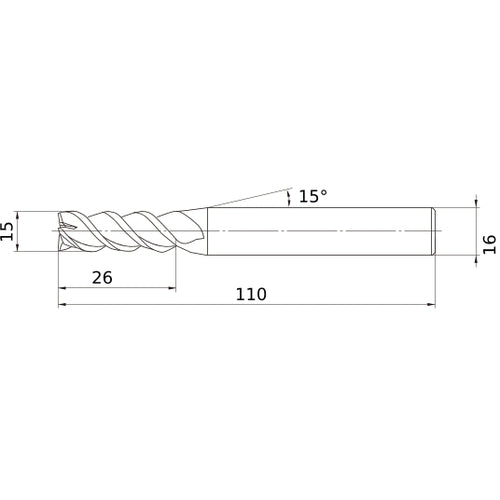

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 15 mm |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 26 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Overall Length (OAL) | 110 mm |
| Length Group | Medium |
| Coating | VQ |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Series/List # | VQMHZV |
