STAWSN1700S20 INDX DRILL
Item #: MB03646637
Brand: Mitsubishi Materials USA
Model #: 646637

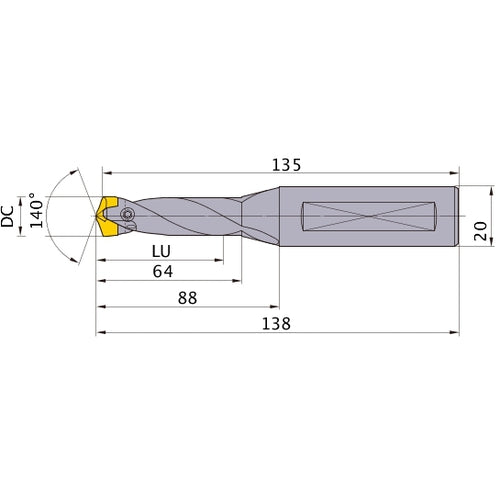

| Product Specifications | |
|---|---|
| Usable Length (LU) | 64 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 3D |
| Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Measurement Type | Metric |
| Protruding Length (LPR) | 88 mm |
| Series/List # | STAW |
| Functional Length (LF) | 135 mm |
| Angle | 140 Degrees |
| Overall Length (OAL) | 138 mm |
