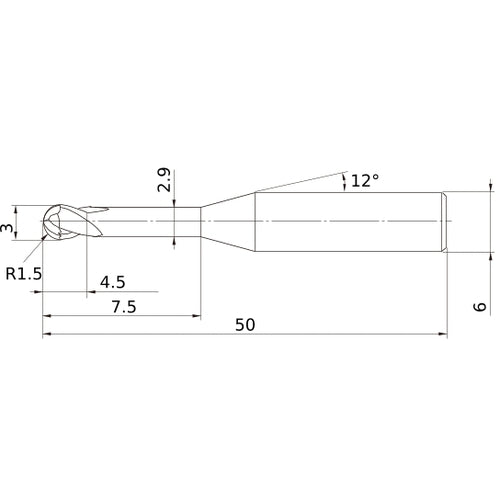

VQ4SVBR0150 CARBIDE ENDMILL
Item #: MB03649424
Brand: Mitsubishi Materials USA
Model #: 649424
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| Corner Radius (RE) | 1.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Neck Diameter (DN) | 2.9 mm |
| Depth of Cut Maximum (APMX) | 4.5 mm |
| Body Half Taper Angle (BHTA) | 12 Degrees |
| Overall Length (OAL) | 50 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Coating | VQ |
| Length Group | Short |
| Flute Helix Angle (FHA) | 45 Degrees |
| Measurement Type | Metric |
| End Shape | Ball |
| Series/List # | VQ4SVB |
| Usable Length (LU) | 7.5 mm |
