MVX2700X5F32 INDX DRILL
Item #: MB03654258
Brand: Mitsubishi Materials USA
Model #: 654258

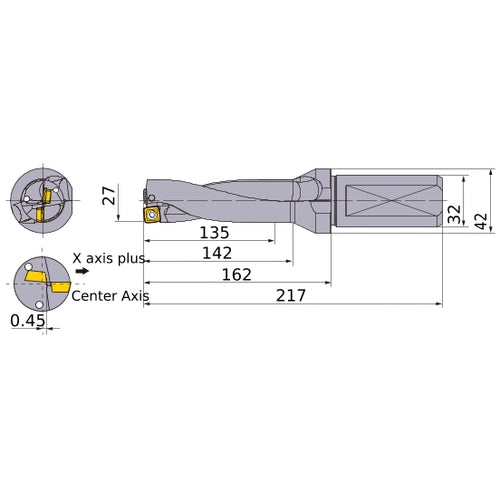

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 27 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 135 mm |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Flange Diameter (DF) | 42 mm |
| Protruding Length (LPR) | 162 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 217 mm |
| Length Group | 5D |
