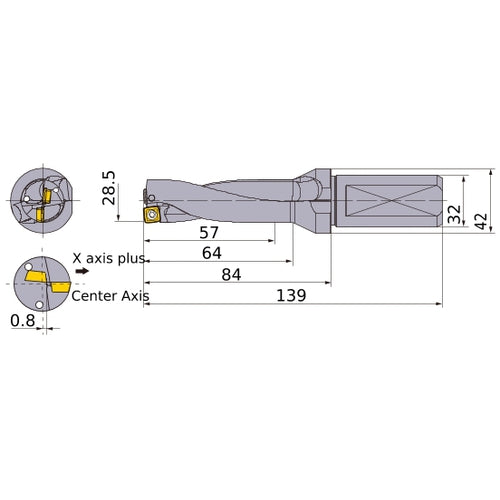

MVX2850X2F32 INDX DRILL
Item #: MB03654346
Brand: Mitsubishi Materials USA
Model #: 654346
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 28.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 57 mm |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Flange Diameter (DF) | 42 mm |
| Protruding Length (LPR) | 84 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 139 mm |
| Length Group | 2D |
