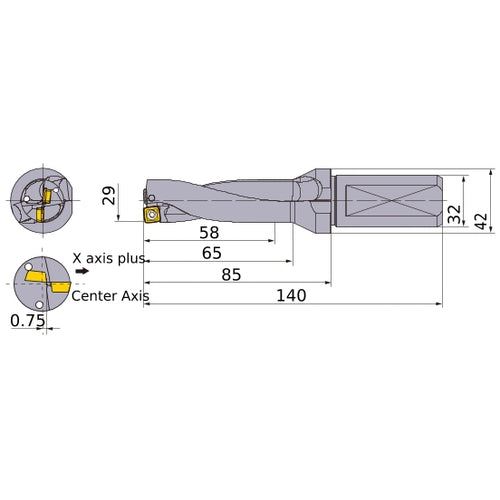

MVX2900X2F32 INDX DRILL
Item #: MB03654362
Brand: Mitsubishi Materials USA
Model #: 654362
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 29 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 58 mm |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Flange Diameter (DF) | 42 mm |
| Protruding Length (LPR) | 85 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 140 mm |
| Length Group | 2D |
