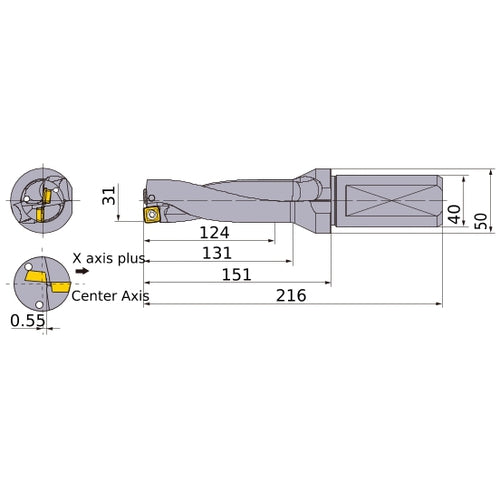

MVX3100X4F40 INDX DRILL
Item #: MB03654514
Brand: Mitsubishi Materials USA
Model #: 654514
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 31 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 124 mm |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Flange Diameter (DF) | 50 mm |
| Protruding Length (LPR) | 151 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 216 mm |
| Length Group | 4D |
