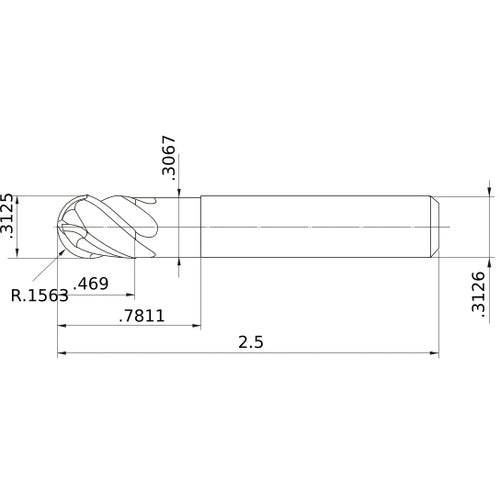

VQ4SVBD5/16 CARBIDE ENDMILL
Item #: MB03657344
Brand: Mitsubishi Materials USA
Model #: 657344
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Corner Radius (RE) | 0.1563″ |
| Connection Diameter Machine Side (DCONMS) | 0.3126″ |
| Neck Diameter (DN) | 0.3067″ |
| Depth of Cut Maximum (APMX) | 0.469″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Overall Length (OAL) | 2-1/2″ |
| Length Group | Short |
| Coating | VQ |
| Decimal Equivalent | 0.3125″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Measurement Type | Inch |
| End Shape | Ball |
| Series/List # | VQ4SVB_INCH |
| Usable Length (LU) | 0.7811″ |
