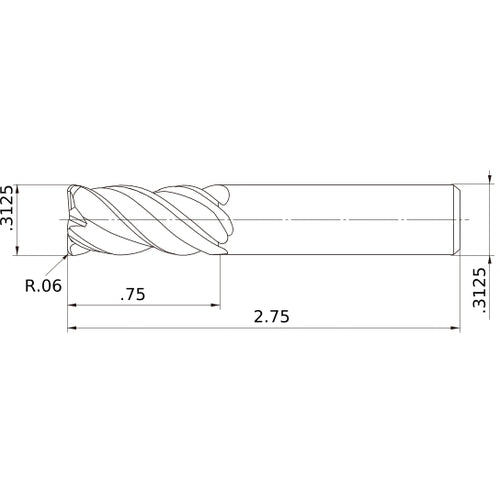

VQMHVRBFD5/16R060 CARBIDE ENDMILL
Item #: MB03657416
Brand: Mitsubishi Materials USA
Model #: 657416
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Corner Radius (RE) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Length Group | Medium |
| Overall Length (OAL) | 2-3/4″ |
| Decimal Equivalent | 0.3125″ |
| Coating | VQ |
| Measurement Type | Inch |
| End Shape | Corner Radius |
| Series/List # | VQMHVRBF_INCH |
