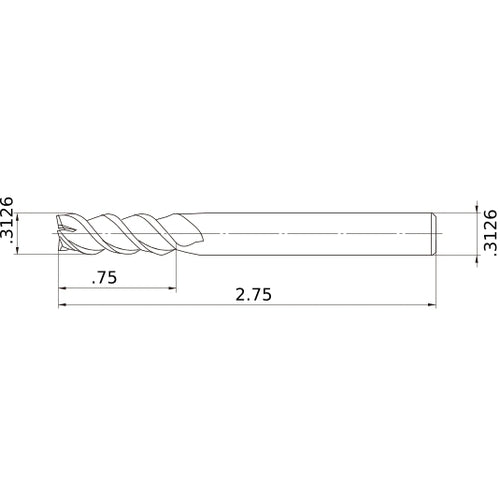

VQMHZVOHD5/16 CARBIDE ENDMILL
Item #: MB03657512
Brand: Mitsubishi Materials USA
Model #: 657512
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.3126″ |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 0.3126″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Length Group | Medium |
| Overall Length (OAL) | 2-3/4″ |
| Measurement Type | Inch |
| Coating | VQ |
| Series/List # | VQMHZVOH_INCH |
| Flute Count (NOF) | 3 |
