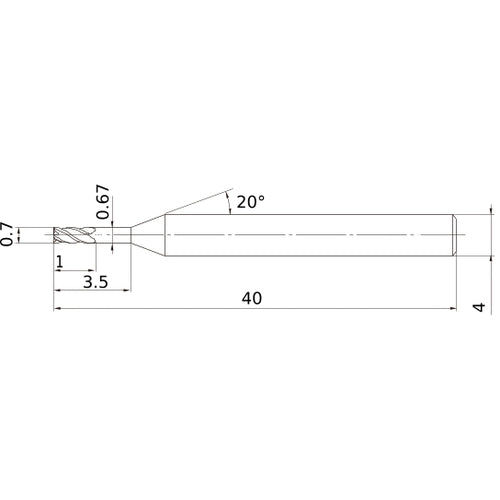

VQXLD0070N035 CARBIDE ENDMILL
Item #: MB03691251
Brand: Mitsubishi Materials USA
Model #: 691251
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.7 mm |
| Usable Length (LU) | 3.5 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Neck Diameter (DN) | 0.67 mm |
| Depth of Cut Maximum (APMX) | 1 mm |
| Body Half Taper Angle (BHTA) | 20 Degrees |
| Overall Length (OAL) | 40 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Coating | VQ |
| Length Group | Short |
| Flute Helix Angle (FHA) | 35 Degrees |
| Measurement Type | Metric |
| End Shape | Center Cutting |
| Series/List # | VQXL |
