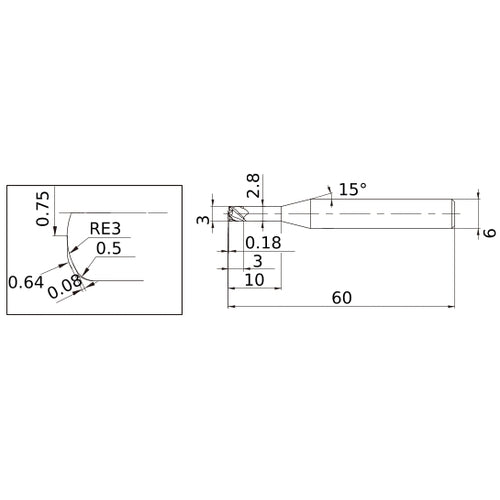

VFFDRBD0300 CATALOG SOLID CARB EM
Item #: MB03825379
Brand: Mitsubishi Materials USA
Model #: 825379
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| Corner Radius (RE) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees |
| Depth of Cut Maximum (APMX) | 0.18 mm |
| Neck Diameter (DN) | 2.8 mm |
| Overall Length (OAL) | 60 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Coating | VF |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Flute Helix Angle (FHA) | 40 Degrees |
| Length Group | Long - Necked |
| End Shape | Corner Radius |
| Measurement Type | Metric |
| Usable Length (LU) | 10 mm |
| Series/List # | VFFDRB |
