MP2MBR0150
Item #: MB03826312
Brand: Mitsubishi Materials USA
Model #: 826312

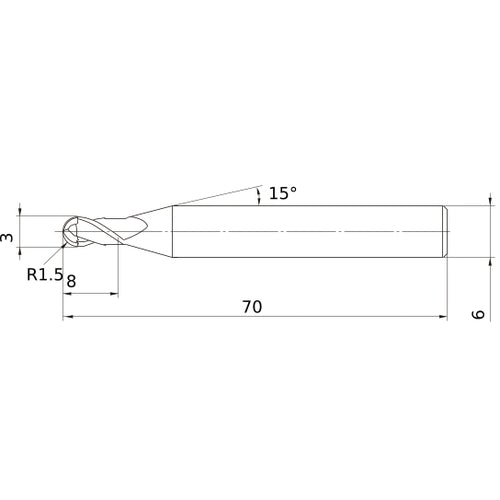

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| Corner Radius (RE) | 1.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 8 mm |
| Length Group | Medium |
| Overall Length (OAL) | 70 mm |
| End Shape | Ball Nose |
| Coating | MS+ |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Series/List # | MP2MB |
| Flute Helix Angle (FHA) | 30 Degrees |
