MVX3900X2F40 INDX DRILL
Item #: MB03833150
Brand: Mitsubishi Materials USA
Model #: 833150

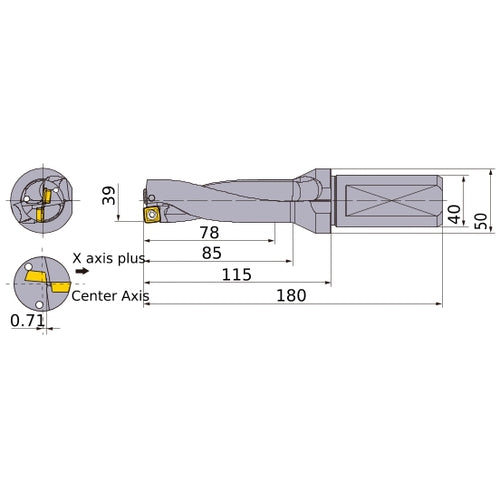

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 39 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 78 mm |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Flange Diameter (DF) | 50 mm |
| Protruding Length (LPR) | 115 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 180 mm |
| Length Group | 2D |
