MVX1500X6C150 INDEXABLE DRILL
Item #: MB03837441
Brand: Mitsubishi Materials USA
Model #: 837441

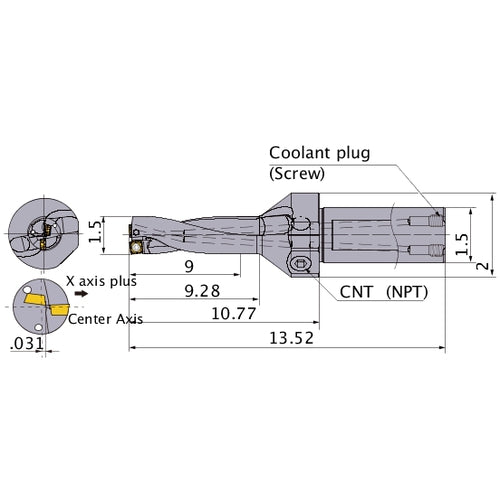

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1-1/2″ |
| Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 9″ |
| Flange Diameter (DF) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Measurement Type | Inch |
| Protruding Length (LPR) | 10.77″ |
| Length Group | 6D |
| Overall Length (OAL) | 13.52″ |
| Decimal Equivalent | 1.5″ |
| Coolant Supply Property (CSP) | Coolant Thru |
