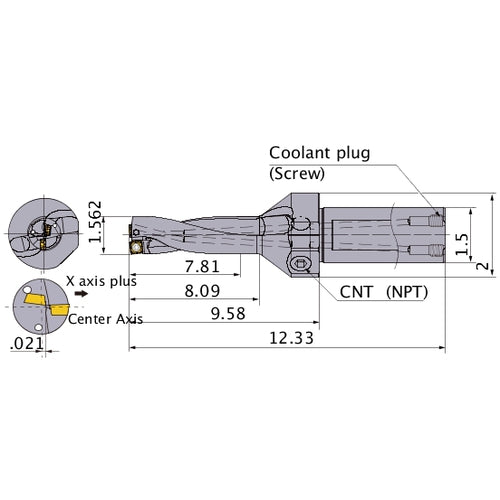

MVX1562X5C150 INDEXABLE DRILL
Item #: MB03837484
Brand: Mitsubishi Materials USA
Model #: 837484
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.562″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 7.81″ |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Flange Diameter (DF) | 2″ |
| Protruding Length (LPR) | 9.58″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 12.33″ |
| Length Group | 5D |
