MVX2250X5C150 INDEXABLE DRILL
Item #: MB03837871
Brand: Mitsubishi Materials USA
Model #: 837871

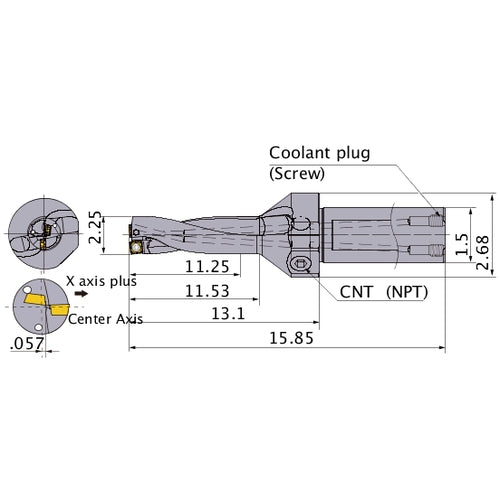

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 2-1/4″ |
| Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 11-1/4″ |
| Flange Diameter (DF) | 2.68″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Measurement Type | Inch |
| Protruding Length (LPR) | 13.1″ |
| Length Group | 5D |
| Overall Length (OAL) | 15.85″ |
| Decimal Equivalent | 2.25″ |
| Coolant Supply Property (CSP) | Coolant Thru |
