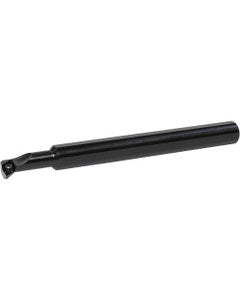

S10XSDUCR2 Right-Hand, Positive Rake, Boring Bar
Item #: KY96THC89278
Brand: Kyocera Precision Tools
Model #: THC89278
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.6252″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 7″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 7″ |
| Rake Angle Axial (GAMP) | 3 Degrees |
| Head Length (LH) | 1.1252″ |
| Rake Angle Radial (GAMF) | -5 Degrees |
| Shank Height (H) | 0.5839″ |
| Series/List # | GPBB |
| Shank Length (LS) | 5.8748″ |
| Body Material | Steel |
| Functional Width (WF) | 0.346″ |
| Style | S...SDUC |
| Master Insert Identification (MIID) | | DCGT215 | DCMX215 | DCMT215 | DCET215 | DCMW215 | |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.5642″ |
| Weight of Item (WT) | 0.6 |
