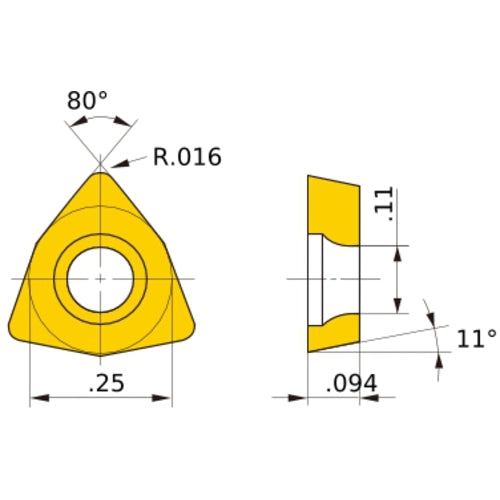

WPGT21.51 MD220
Item #: MB04413075
Brand: Mitsubishi Materials USA
Model #: 413075
| Product Specifications | |
|---|---|
| Cutting Edge Length (L) | 2.9 mm |
| Grade | MD220 |
| Insert Thickness (S) | 2.38 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Insert Included Angle (EPSR) | 80 Degrees |
| Chip Breaker Type | standard |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Series/List # | MD220 |
| Corner Radius (RE) | 0.4 mm |
| Cutting Edge Material | PCD |
| Fixing Hole Diameter (D1) | 2.8 mm |
| Measurement Type | Metric |
| Shape | Trigon |
| Cutting Direction (HAND) | Neutral |
