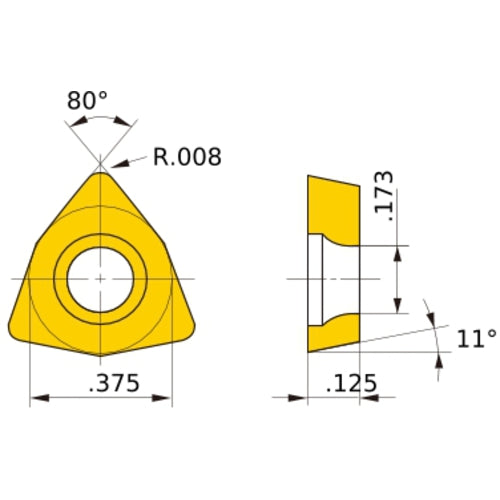

WPGT320.5 MD220
Item #: MB04413083
Brand: Mitsubishi Materials USA
Model #: 413083
| Product Specifications | |
|---|---|
| Cutting Edge Length (L) | 3.3 mm |
| Grade | MD220 |
| Insert Thickness (S) | 3.18 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Insert Included Angle (EPSR) | 80 Degrees |
| Chip Breaker Type | standard |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Series/List # | MD220 |
| Corner Radius (RE) | 0.2 mm |
| Cutting Edge Material | PCD |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Measurement Type | Metric |
| Shape | Trigon |
| Cutting Direction (HAND) | Neutral |
