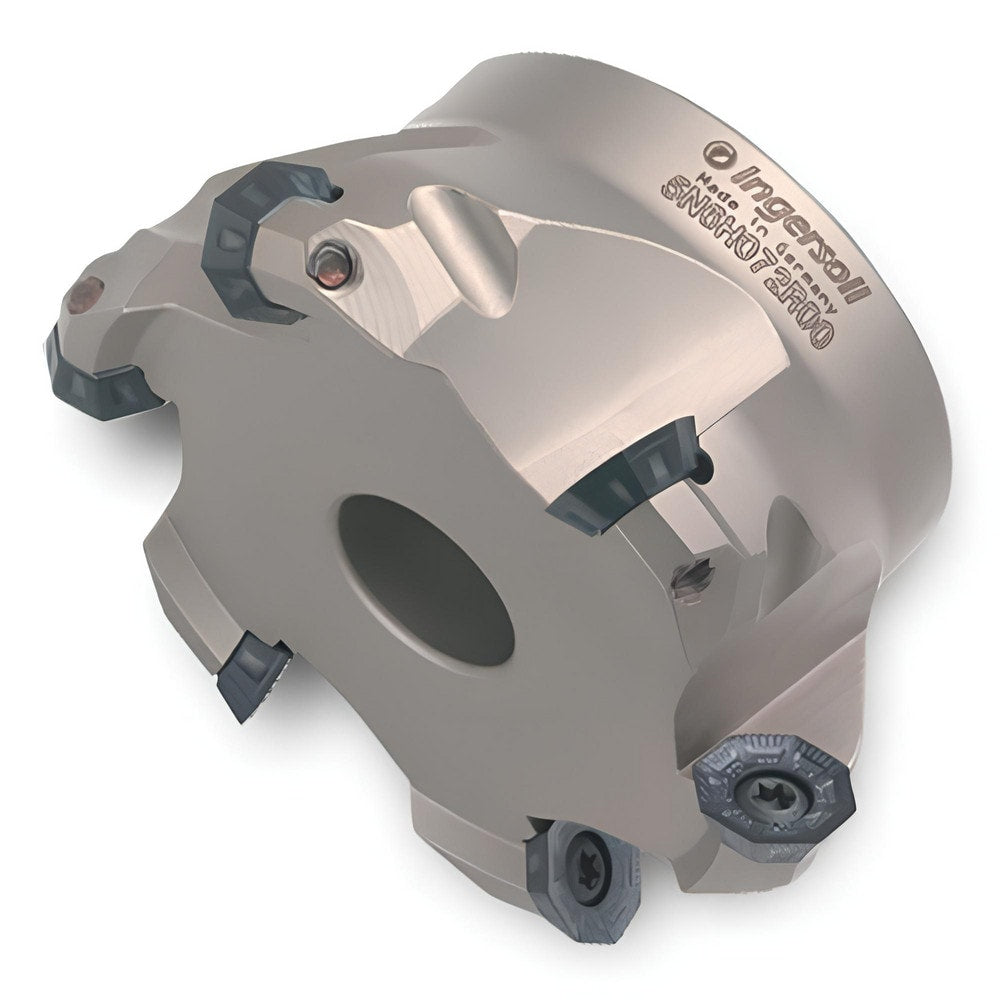

Brand: Ingersoll Cutting Tools / Part #: 3019948
Item #: 66048844
Brand: Ingersoll Cutting Tools
Model #: 3019948
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Minimum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (mm) | 83.57 |
| Maximum Cutting Diameter (Decimal Inch) | 3.2900 |
| Maximum Depth of Cut (Decimal Inch) | 0.1300 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | 1404; 05T3 |
| Cutter Style | 5N6H |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | 5N6H |
| Keyway Width (Decimal Inch) | 0.3750 |
| Keyway Width (Inch) | 3/8 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Pitch Type | Normal |
| Tool Application | Chamfering; Facing; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | RFMT1404; OFxT05T3 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 5N6H-30R00 |
| Number Of Cutter Inserts | 7 |
| Coolant Through | No |
| Number Of Flutes | 7 |
