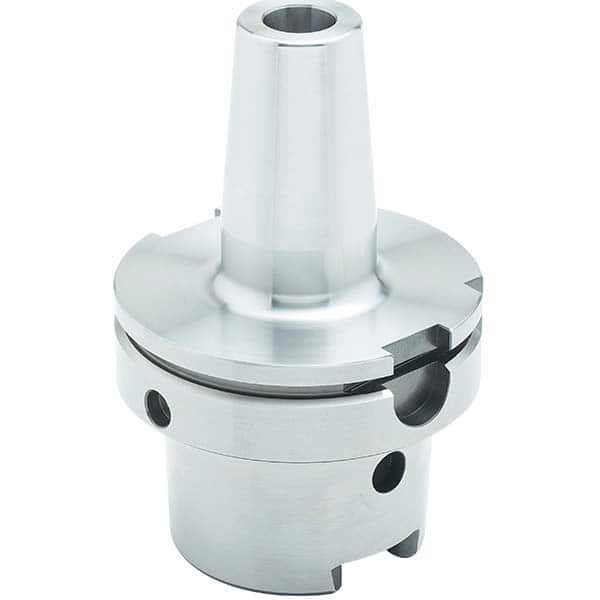

Parlec - Shrink-Fit Tool Holders & Adapters Shank Type: Taper Shank Taper Size: HSK100A
Item #: 10340792
Brand: Parlec
Model #: H100-10SF453-9
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
Product Specifications
Shrink-Fit Tool Holders & Adapters; Shank Type: Taper Shank ; Taper Size: HSK100A ; Hole Diameter (Inch): 1 ; Projection (Decimal Inch): 4.5300 ; Nose Diameter (Decimal Inch): 0.7300 ; Through Coolant: Yes
| Shank Type | Taper Shank |
| Taper Size | HSK100A |
| Hole Diameter (Inch) | 1 |
| Projection (Decimal Inch) | 4.5300 |
| Nose Diameter (Decimal Inch) | 0.7300 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 2.2800 |
| Overall Length (Decimal Inch) | 6.49850 |
| Balanced to (RPM) | 25000 |
| Additional Information | with Coolant Grooves |
| TIR (mm) | 0.0030 |
