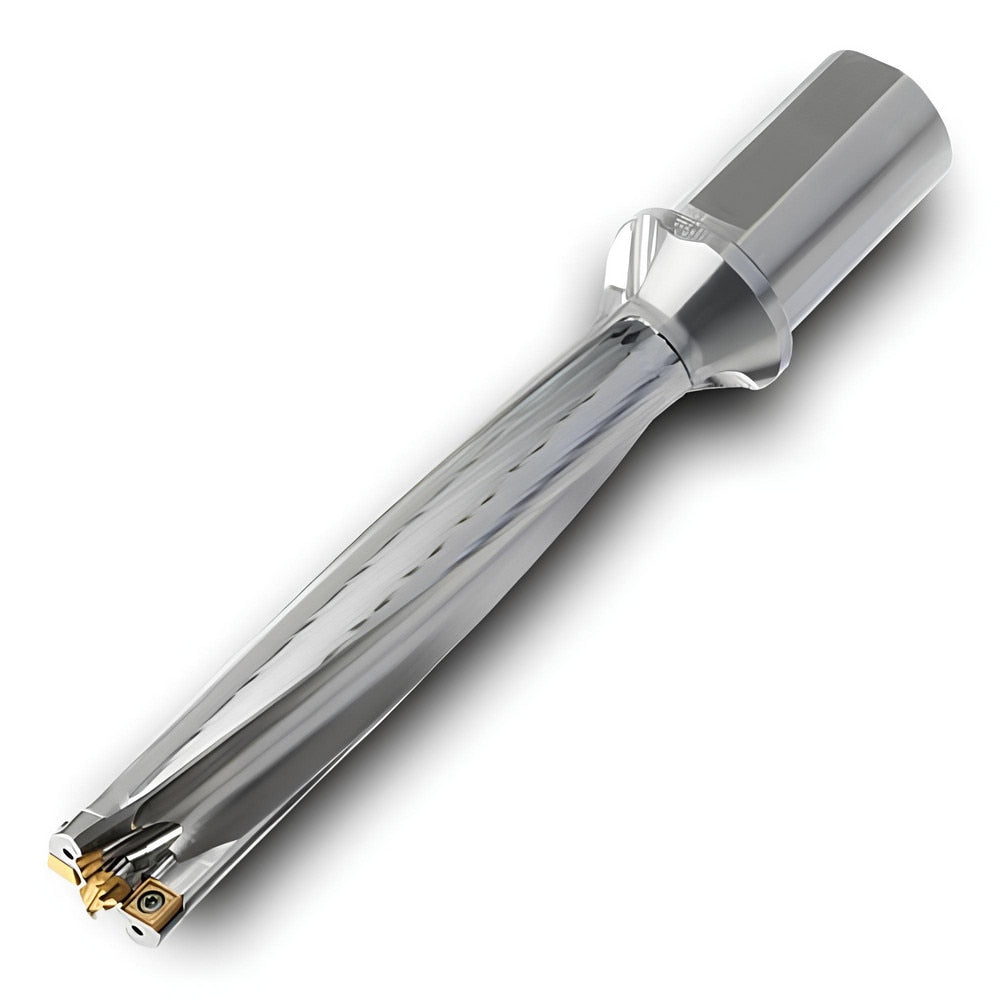

Brand: Ingersoll Cutting Tools / Part #: 6140146
Item #: 98835762
Brand: Ingersoll Cutting Tools
Model #: 6140146
Product Specifications
| Minimum Drill Diameter (mm) | 45.00 |
| Maximum Drill Diameter (mm) | 45.00 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 230.00 |
| Shank Type | Flatted |
| Insert Style | TPC; SPGX |
| Insert Seat Size | 11; 24 |
| Shank Diameter (mm) | 40.0000 |
| Tool Material | Steel |
| Compatible Insert Style | TPC; SPGX |
| Compatible Insert Size Code | 110408; 2490 |
| Overall Length (mm) | 349.2000 |
| Series | CD |
| Toolholder Style | CD |
| Flute Length (mm) | 281.20 |
| Body Length | 349.200 |
| Shank Length (mm) | 70.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
