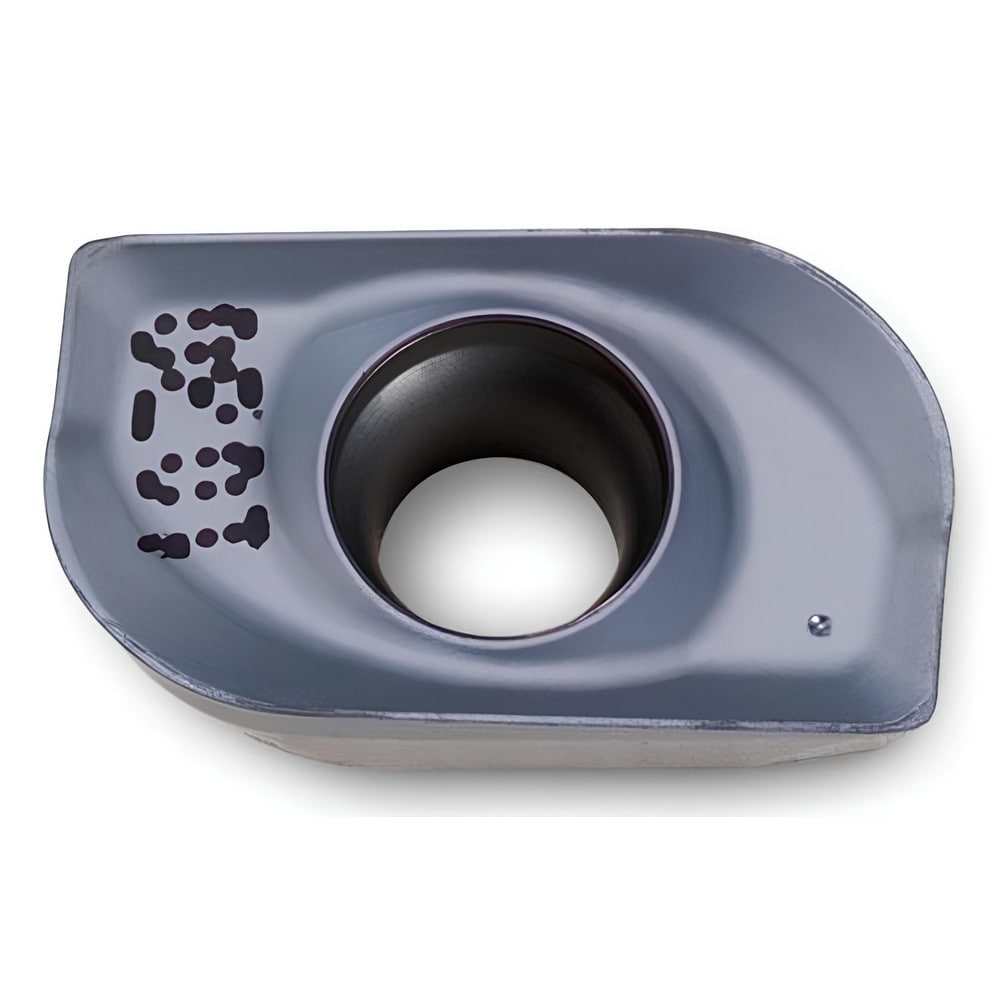

Brand: Ingersoll Cutting Tools / Part #: 5801747
Item #: 67306134
Brand: Ingersoll Cutting Tools
Model #: 5801747
Product Specifications
| Insert Style | APEB |
| Insert Size Code | 53 |
| Insert Material | Carbide |
| Manufacturer Grade | IN30M |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 3/16 |
| Insert Hand | Right Hand |
| Series | APEB |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.6000 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron |
| Primary Workpiece Material Code | K; M |
| Ansi Code | APEB53R06 |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | APEB53R06 IN30M |
| Cutter Series Compatibility | 12J1B; 22J3B; 23J6G; 12J4B; 2J1B; 22J5B |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 15.2400 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2070 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6790 |
